• IFW-1217T 17ft twisted balanced cable
• IFW-1212T 12ft twisted balanced cable
• IFW-1206T 6ft twisted balanced cable
• IFW-1203T 3ft twisted balanced cable
• IFW-12Y2M1 2male + 1 female, Y-jack
• IFW-12Y1M2 1male + 2 female, Y-jack

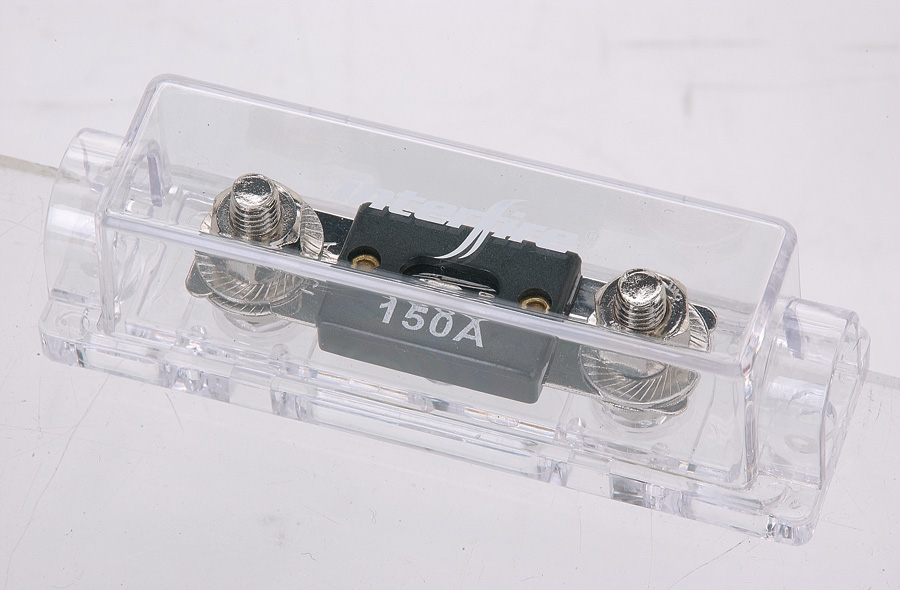

• IFW-ANL150 ANL Fuse 150 amps w/Box

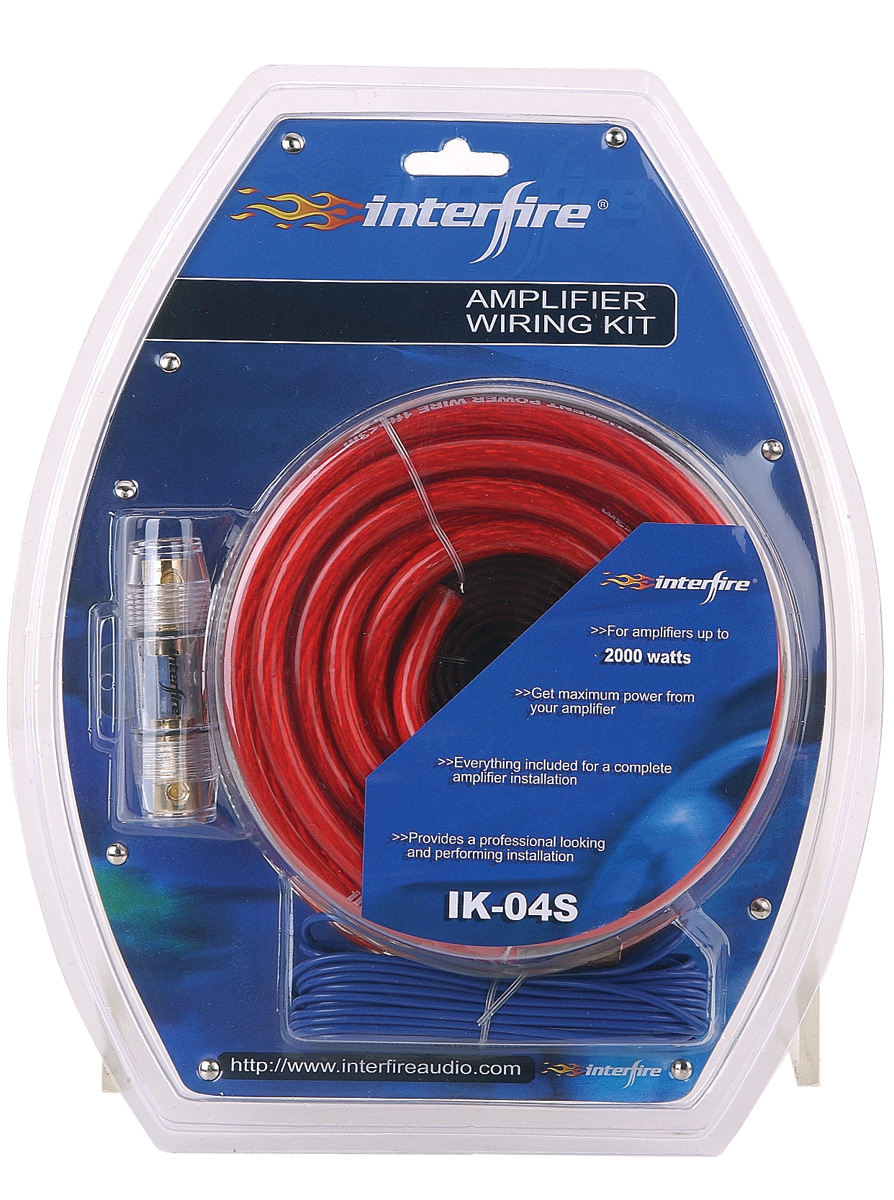

• 4 Gauge Power Wire (2000 watts max)
• 1-17ft Translucent Red Power Wire
• 1-3ft Translucent Black Power Wire
• 1-17ft Translucent Blue Twisted pair RCA interconnect
• 1-5ft Black flex loom tubing
• 1-16ft Blue remote turn-on wire
• 1-20ft Translucent speaker cable
• 1- Waterproof AGU fuse holder w/80A fuse
• 2-Gold plated ring terminals
• 2-Gold plated spade terminals
• 10-4in. black cable ties
• 2-splice connectors

• 8 Gauge Power Wire (1400 watts max)
• 1-17ft of 8ga transparent red cable
• 1-3ft of 8ga transparent black ground cable
• 1-17ft dark blue double shielding structured RCA cable
• 2-0.7ft dark blue 2M1F RCA cable
• 1-18ft of 14ga transparent speaker cable
• 1-nickel plated AGU fuse holder with 2pcs 70a AGU fuse
• 2-8ga nickel plated “O” terminal
• 2-8ga nickel plated “U” terminal
• 1-6ft black split loom.od 8.00MM
• 2-self-tapping screw
• 10-7” black cable ties
• 1-sanp-in wire gromme

• 8 Gauge Power Wire (1400 watts max)
• 1-17ft of 8ga transparent red cable
• 1-3ft of 8ga transparent black ground cable
• 1-17ft dark blue double shielding structured RCA cable
• 2-0.7ft dark blue 2M1F RCA cable
• 1-18ft of 14ga transparent speaker cable
• 1-nickel plated AGU fuse holder with 2pcs 70a AGU fuse
• 2-8ga nickel plated “O” terminal
• 2-8ga nickel plated “U” terminal
• 1-6ft black split loom.od 8.00MM
• 2-self-tapping screw
• 10-7” black cable ties
• 1-sanp-in wire gromme

You've trusted our name for car audio, now you can accessorize your ride with these high power LED strips by Interfire. Made with the highest quality LED chips and waterproof for applications inside and out of your vehicle. Others sell the cheap LED strips that are covered with a non waterproof plastic, but these are coated with silicone so water can never get inside and damage them. These strips are thin and flexible so you don't have to worry about mounting them in plain view, you can easily apply them in almost any space. Engineered & designed in Japan these LED strips are manufactured to meet your specifications: High in quality and long lasting.

Available in multiple colors and lengths.

Rating Electrical/Optical Characteristics (5 meters / 186.90 inch))

Method of Installation
Calculation of power supply: LED Flexible Strip is calculated by meter. This type LED Flexible Strip includes 66 LED's per meter, using series plus parallel circuitry. Every 3 LED's is in a series circuit. Therefore, 22 groups are paralleled in one meter. The standard current for each group is 20mA. So formula is like this: 20mA*22=440mA*12V=5.28W. For five meters: 5.28W*5=25.14W. The above formula is in theory. For the sake of keeping long life-span of power supply, a 20% up tolerance is advised. Thus, the proper power is: 25.15W*1.2=30W

1. Pole: Please follow the signs printed on PCB board to connect the wire. Normally white wire is negative, gray wire positive. See picture 1.



2. Fixture: Split the 3M back tape. Then it can be stuck.. See picture 2.



3. Cutting: Cut the strip at the place where there is a scissors sign. See the pictures below.



4. Notice:
   a) In case of damaging the PCB, the strip should not be bent in to 90 degree radian during installation.
   b) It can be cut according to user's purpose, but only should it be cut at the scissors sign.
   c) The diameter of the wire for power supply should be decided by the possible emerging maximum current, power of the products, the length (5 meters are recommended) and the wire's resistant feature of low voltage electricity.
   d) Water protection lever Ip65. It cannot be used under water.
